Product information

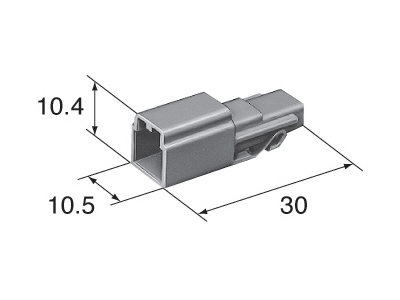

(Unit：mm)
Contact us for products- 8100-0477
- 62 series
- Terminal For AV Wire
- 1.5mm(060)
| Sealed/Unsealed | unsealed |
|---|---|
| Male/Female | M |
| Tab Size | 1.5mm(060) |
| Mating parts |
8100-0479(62 series) |
| Applicable wire size |
|
|---|---|
| Cable overall diameter (mm) | 1.1-1.9 |
| Materials | Brass |
| Surface treatment | Tin-plated |
| Thickness (mm) | 0.3 |
| (tab thickness) | 0.6 |
| Contact resistance |
|
| Leak current | 1mA Max. |
| Insulation resistance | 100MΩ Min. |
| Note | S TYPE |
|---|
